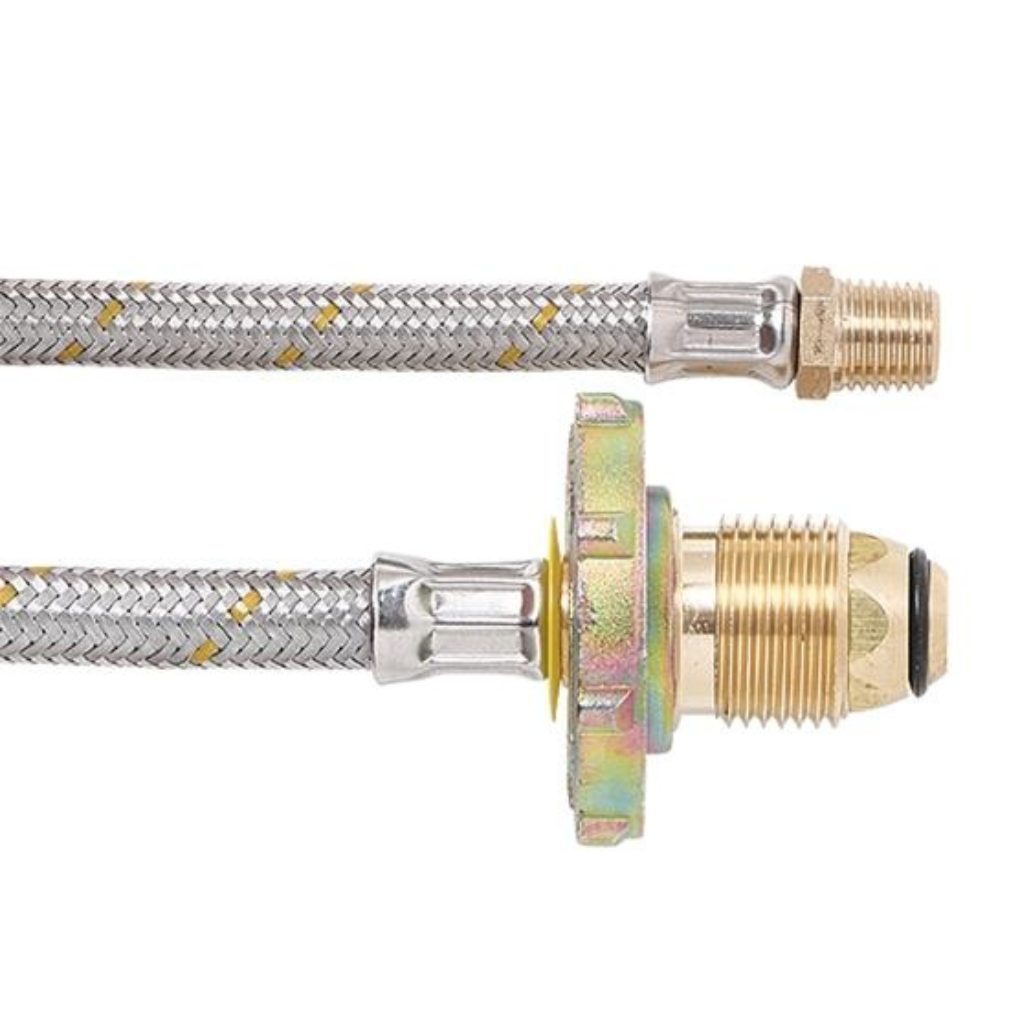

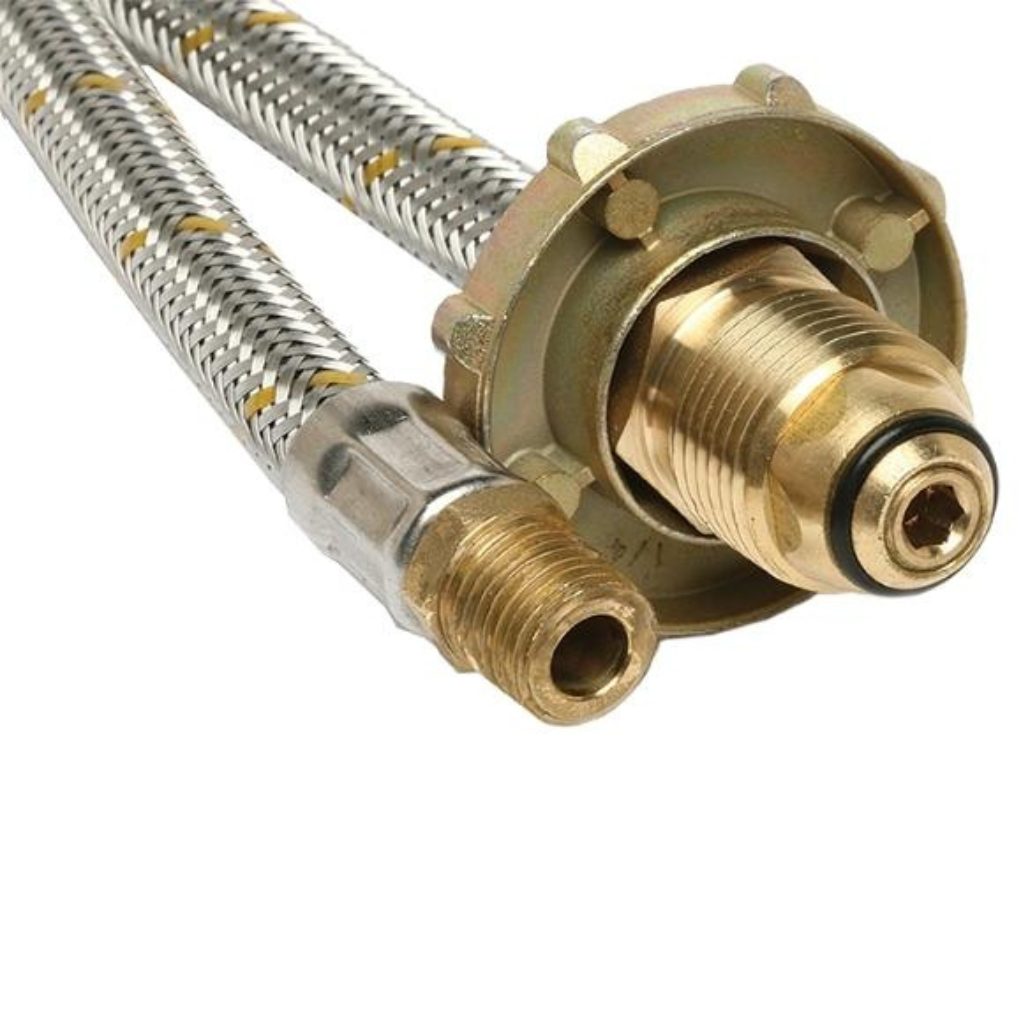

Bromic 6SHW0450 450mm Stainless Steel Gas Flexi Hose POL w Handwheel x 1/4 Inv Flare – Suits Twin Cylinders. 6mm Stainless Steel Pigtail 7/16-24 I/Flare x POL Hand Wheel (450mm). Bromic flexible stainless steel Class F pigtail assemblies are manufactured in accordance with AS1869 and approved by the Australian Gas Association for use with gas. 7/16-24 Inverted Flare x POL Hand Wheel connection, 450mm length.

FEATURES AND BENEFITS:

• AGA Approved
• Maximum working pressure 2600 kPa
• Working temperature -20°C to +100°C
• Approved to AS/NZS 1869:2012

SPECIFICATIONS:

• Product Number: 6SHW0450
• Diameter(mm) 6
• Max. Working Pressure (kPa) 2600
• Min Working Temperature -20
• Max. Working Temperature 100
• Brands Bromic
• Thread Size 7/16″
• Thread Type Inverted Flare, POL
• Connector M, MF
• Fuel type LPG
• Material Stainless Steel
• Hose Length (mm) 450
• Gas Hose Class F
• Inlet Connection ( Connector ) Inverted Flare
• Inlet Connection ( Thread Size ) 7/16″-24
• Outlet Connection ( Thread Type ) POL



WHAT IS INCLUDED:

• 1 x Bromic 6SHW0450 450mm Stainless Steel Gas Flexi Hose POL w Handwheel x 1/4 Inv Flare – Suits Twin Cylinders

IMPORTANT INFORMATION:

Not what you are looking for? Check out our full range of Gas Regulators & Hoses here.

NOT suitable for single cylinder installations. The Inverted Flare goes into a two way valve where two cylinders are used. When one cylinder is attached the NPT thread goes directly into the regulator.
For a single cylinder you may require an adaptor – check out these options –

• Gas Components 01-6203B Inverted Flare 1/4″ MNPT Male Union Adaptor Gas Regulator
• Gas Components 5904 Inverted Flare 1/4″ x 1/4″ MNPT Elbow
