Cruisemaster DO35 V3Plus with Handbrake – 3.5T Coupling. The Adventure Continues with the DO35 V3Plus, taking you further than other couplings!

V3Plus Exclusive Features:
Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
Improved Bumper molding gives the from reflector strip improved staying power
Rear support webbing allows for mounting upside down on the underside of the drawbar

FEATURES AND BENEFITS:

• 2 Stage ADR compliant locking mechanism
• Low profile Bumper & Cap for impressive clearance
• High articulation for improved handling off-road and on unmaintained roads
• Available with or without handbrake
• Suitable for use with most Weight Distribution System’s
• Forged Yoke and Rear Nut for added strength
• Exceeds ADR 62/01 and 62/02 strength requirements
• One piece light weight Cast Housing
• Standard Aus bolt pattern for easy fitment
• 7/8” shaft to fit most std. tow tongues
• Improved towing safety
• Combination of zn-ni and e-coat for superior corrosion protection
• Greaseable Bushes for easy maintenance and noise free towing
• No tow ball height restrictions
• R.A.T Run Tested and Proven
• User Guide

SPECIFICATIONS:

• ARTICULATION: 360 degrees axial, minimum 70 degrees other axes.
• LOCKING: Fully ADR 62/02 compliant including automatic secondary lock
• BOLT PATTERN: 4 bolts at 185mm x 54mm
• RATING: 3.5 Tonne
• ACTION: Drop-On
• MAINTENANCE: Fully Greasable

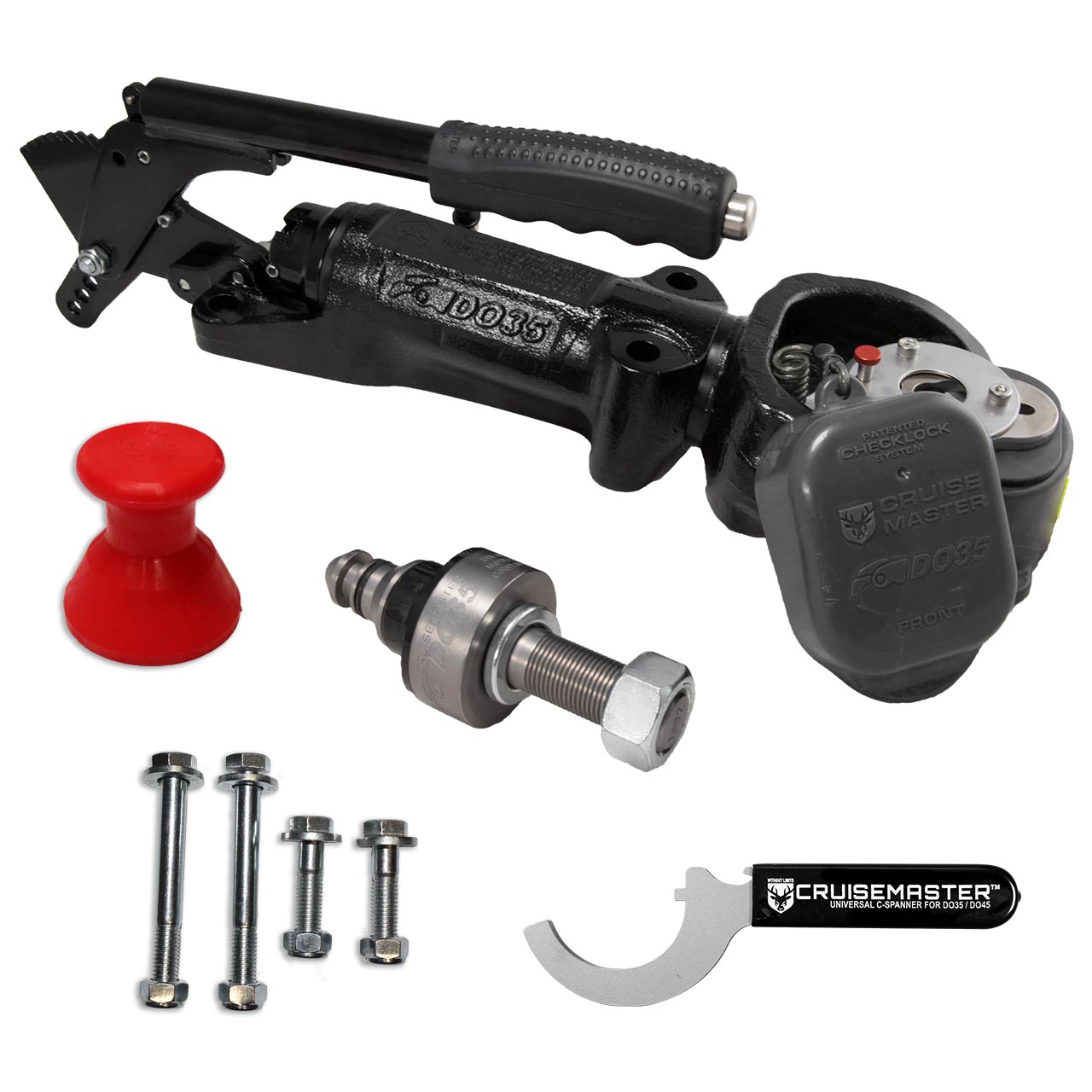

WHAT IS INCLUDED:

• 1 x Cruisemaster DO35 V3Plus with Handbrake – 3.5T Coupling
• Includes:
  • 1 x DO35 V3Plus w/ Handbrake
  • 1 x Tow Pin 7/8″ Shaft
  • 1 x Tow Pin Cover
  • 1 x Universal C-Spanner
  • 1 x Fitment Bolts
  • 1 x User Guide

IMPORTANT INFORMATION:

Not what you are looking for? Check out our full range of DO35/45 Coupling Kits here.
